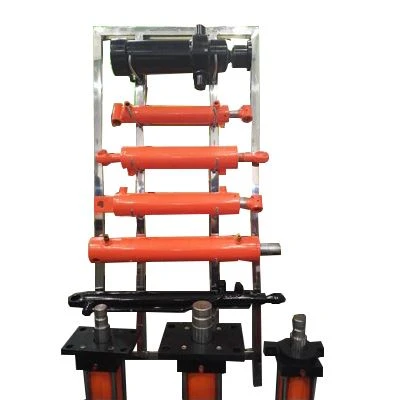

Front Loader Hydraulic Cylinders

Tonghesheng Machinery is one of the competitive manufacturers and suppliers of high-quality front loader hydraulic cylinders, and we are also equipped with a professional factory, welcome to buy front loader hydraulic cylinders products from our company.



Front loader hydraulic cylinders handle the heavy lifting, tilting, and steering duties in compact tractors, skid steers, backhoes, and wheeled loaders. Installed directly on loader arms and buckets, these double-acting welded cylinders operate under continuous cyclic pressure, shock loads, and harsh environmental conditions (dirt, moisture, and debris).

We supply custom-engineered OEM hydraulic cylinders built specifically for agricultural, construction, and material handling loaders. Designed for operating pressures up to 3,000 PSI (20.7 MPa), our cylinders deliver reliable force output, precise cycle times, and fatigue-resistant construction for high-duty applications.





Parameter	Specification Range	Notes / Standard Options
Bore Size	40 mm – 160 mm (1.5" – 6.0")	Custom bores available on request
Rod Diameter	25 mm – 100 mm (1.0" – 4.0")	Induction hardened & chrome plated
Stroke Length	Up to 2,000 mm (78.7")	Built to match loader arm kinematics
Operating Pressure	Rated 210 bar (3,000 PSI) / Peak 250 bar	High-pressure designs up to 350 bar
Operating Temperature	-30°C to +100°C (-22°F to +212°F)	Cold-weather seal options (-40°C) available
Cylinder Barrel Material	ST52-3 / E355 / Honed Seamless Tube	Roughness Ra <= 0.4 µm
Piston Rod Material	42CrMo / AISI 4140 / C45E	Chrome thickness 25-30 µm, Salt spray > 96 hrs
Mounting Types	Cross tube, spherical bearing, clevis, pin eye	Hardened steel bushings or greaseable joints
Port Types	SAE O-Ring Boss (ORB), NPT, BSPP, SAE Flange	Custom port orientation & manifold integration
Sealing System	Hallite, NOK, Parker, or equivalent	Low-friction U-cup seals with wiper rings





High-Yield Seamless Tubing: Cold-drawn seamless steel barrels honed to a smooth finish (Ra <= 0.4 µm) to minimize internal bypass leakage and seal abrasion.
Induction Hardened Rods: Rod surfaces are induction-hardened (HRC 52-58) prior to hard chrome plating, protecting against rock impacts, denting, and bending forces during heavy excavation.
Heavy-Duty Polyurethane Seals: Multi-stage seal pack incorporates step-seals, primary lip seals, and aggressive wiper blades to prevent external dirt, slurry, and grit ingress.
Integrated Hydraulic Cushioning: Optional end-of-stroke cushions reduce mechanical impact and vibration when loader arms reach maximum tilt or lift height.
Direct Valve Mounting: Direct-flange manifold options allow counterbalance or pilot-operated check valves to be mounted directly onto the cylinder barrel, preventing load drop in case of hose failure.





Front loaders subject hydraulic cylinders to unique mechanical stresses that standard off-the-shelf cylinders cannot withstand:
Side Load Resistance: When grading or pushing uneven loads, loader arms exert severe lateral forces on the rod guide. Our designs feature extended ductile iron or bronze rod guide bushings to distribute side-load stress and prevent premature scoring.
Buckling Resistance: Long-stroke lift cylinders operate near full extension under heavy payload conditions. Wall thickness and rod diameter are optimized based on Euler column buckling calculations under 1.5x safety factor minimums.
Debris & Weather Protection: Loader tilt cylinders operate directly adjacent to dirt piles and gravel. Dual-lip wipers combined with optional rod boots prevent abrasive particle build-up around the gland assembly.





Agricultural Loader Arms: Compact tractor front-end loaders (FEL) handling hay bales, manure, and silage.
Skid Steer Attachments: Tilt and lift cylinders for loader buckets, grapple forks, and auger arms.
Wheel Loaders & Backhoes: Heavy-duty lift, tilt, and steering cylinders for construction equipment.
Industrial Sweepers & Material Handlers: Auxiliary attachment cylinders requiring precise proportional control.





We engineering-match cylinder designs to your exact mechanical footprint and hydraulic system performance:
Port Modifications: Port locations, thread standards (SAE, BSPP, Metric), or integrated steel oil lines running along the cylinder tube.
Mounting Configuration: Custom pin sizes, greasable cross-tubes, spherical bearings, or cast clevis ends matching exact pin-to-pin extended/retracted dimensions.
Sensor Integration: Internal linear position transducers (LVDT or magnetostrictive) for automated loader leveling and boom control.
Surface Finishes: Primer, epoxy paint, polyurethane topcoat, or customized color-matching to OEM machine paint codes (up to 500-hour salt spray rated).





Every stage of manufacturing follows ISO 9001 quality management procedures to ensure batch consistency and dimensional accuracy:
Raw Material Inspection: Chemical analysis and mechanical testing of seamless steel tubes and bar stock upon arrival.
CNC Machining: High-precision CNC turning, thread cutting, and port welding on automated machining centers.
Skiving & Honing: Internal barrel finishing to guarantee tight tolerances (H8/H9) and optimal surface finish for seal longevity.
Induction Hardening & Plating: Rods undergo induction heat treatment, automated centerless grinding, and electroplating.
Robotic Welding: Cylinder end caps and mounting eyes are welded using automated MIG/TIG processes to achieve full-penetration welds and fatigue resistance.
Clean Room Assembly: Cleaned components are assembled in climate-controlled, dust-free assembly bays using torque-controlled tooling.





We conduct rigorous quality verification before shipment:
100% Hydraulic Pressure Testing: Every completed cylinder undergoes low-pressure seal seating tests and high-pressure proof testing (typically 1.5x working pressure) to verify zero leak-by.
Dimension & Alignment Checks: Coordinate Measuring Machine (CMM) and laser measurement of critical mounting hole centers and concentricity.
Plating Quality Analysis: Salt spray testing (ASTM B117) and chrome thickness measurement (magnetic/eddy current gauge) to guarantee corrosion resistance.
Oil Cleanliness Standards: Internal oil flush and particle counter monitoring to meet ISO 4406 cleanliness levels (e.g., ISO 18/16/13).





To accelerate your RFQ process and receive an accurate technical proposal and pricing, please supply:
Dimensional Requirements: Bore diameter, rod diameter, stroke length, and pin-to-pin distance (retracted and extended).
Operating Parameters: Target working pressure, maximum peak pressure, cycle frequency, and operating temperature range.
Mounting & Port Details: Preferred end mounts (e.g., cross tube with grease fitting) and port style/orientation.
Volume & Delivery Schedule: Initial prototype requirements and projected annual volume (EAU).
Drawing or Sample: 2D drawings (PDF/DWG), 3D CAD models (STEP/IGS), or reference OEM part numbers if replacing an existing design.
