Multi-Stage Tipping Cylinders

Tonghesheng Machinery is one of the competitive manufacturers and suppliers of high-quality multi-stage tipping cylinders, and we are also equipped with a professional factory, welcome to buy multi-stage tipping cylinders products from our company.

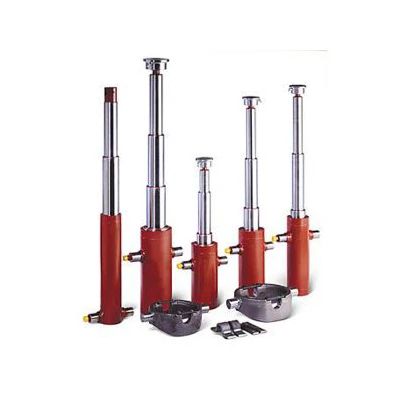

Multi-stage telescopic tipping cylinders deliver extended stroke lengths within a compact retracted footprint, solving mounting space constraints in heavy-duty tipping applications. By utilizing nested tubular stages (plungers) that extend sequentially from largest to smallest diameter, these hydraulic actuators provide maximum tipping angles for dump trucks, tipper trailers, and agricultural tipping platforms without sacrificing chassis clearance.

Engineered primarily as single-acting units with gravity retract (or optional double-acting configurations for controlled lowering), these cylinders optimize oil volume demand and reduce system dry weight. Seamless cold-drawn steel tubing, precision-ground chrome plating, and low-friction sealing systems maintain structural rigidity across long stroke extensions, preventing stage binding, side-load deflection, and fluid bypass during full-tilt operations.





Technical Parameter	Standard Range / Specification	Custom Options Available
Number of Stages	2 to 6 stages	Up to 8 stages
Bore / Stage Diameters	Ø60 mm to Ø250 mm	Tailored stage increments
Maximum Operating Pressure	160 bar to 220 bar (2,320 to 3,190 PSI)	High-pressure designs up to 250 bar
Total Stroke Length	500 mm to 9,000 mm	Application-specific stroke
Tipping Capacity	5 Tons to 100+ Tons	Higher payload engineering
Action Type	Single-acting (gravity descent)	Double-acting / Combination
Rod Material & Surface Treatment	20# / 45# / 27SiMn seamless steel tube; Hard chrome plated 25-40 µm	Ni-Cr plating, QPQ salt bath nitriding
Tube Surface Hardness	HV 800 - 1000	Custom corrosion resistance treatments
Sealing System	Hallite / Merkel / NOK Polyurethane + PTFE seals	High/low temp fluoroelastomer (FKM)
Operating Temperature	-30°C to +100°C	-40°C to +180°C
Mounting Configurations	Trunnion mount, pin-eye, spherical bearings, cover tube	Custom bracketry & cross-bores





Precision Cold-Drawn 27SiMn Tubing: Provides higher tensile strength and yield point compared to standard ST52 or 1045 steel, reducing wall thickness requirements without risking structural buckling under maximum load.
Micro-Finish Internal & External Surfaces: External stage surfaces undergo centerless precision grinding and polishing to a surface roughness of Ra <= 0.4 µm, reducing seal wear and prolonging packing seal service life.
Hard Chrome Plating (25-40 µm): Extends corrosion resistance through rigorous salt spray testing (ISO 9227 NSS rating 9+ at 96 hours), resisting abrasive dust, road salt, and harsh outdoor environments.
Integrated Stop Rings & Anti-Blowout Protection: Solid machined stop rings prevent stage over-travel and structural detachment at full extension, ensuring mechanical limits handle pressure spikes without failure.
Low-Friction Multi-Lip Polyurethane Sealing: Incorporates primary hydraulic seals, secondary anti-extrusion rings, and heavy-duty dust wipers to eliminate external fluid leaks and maintain pressure during hold cycles.





[Stage 1: Max Diameter] ---> Max Force / Initial Extension
[Stage 2: Mid Diameter] ---> Moderate Force
[Stage 3: Min Diameter] ---> Lowest Force / Max Height Reached

Designing a reliable telescopic tipping hydraulic circuit requires evaluating dynamic force changes throughout the tipping cycle:
Thrust vs. Load Angle Alignment: The cylinder output thrust decreases as smaller stages extend (F = P x A). However, the required force to lift a dump body decreases as the tipping angle increases. Matching stage surface areas to the load's center-of-gravity movement prevents hydraulic stalling during stage transitions.
Column Buckling Limits: As stroke length increases, telescopic cylinders act as long slender columns. Pin-to-pin distance, mounting pivot points, and cross-plane side loads must be evaluated to ensure lateral stability.
Oil Volume Demand: The cylinder reservoir must accommodate total internal oil volume at maximum extension. Proper line sizing prevents cavitation during rapid tipping or vacuum formation during fast gravity lowerings.
Descent Control Valves: Counterbalance or flow control valves must be installed to prevent free-fall descent caused by payload shifts during tipping.





Commercial Dump Trucks & Tippers: Front-end and underbody tipping systems for light, medium, and heavy-duty chassis payloads.

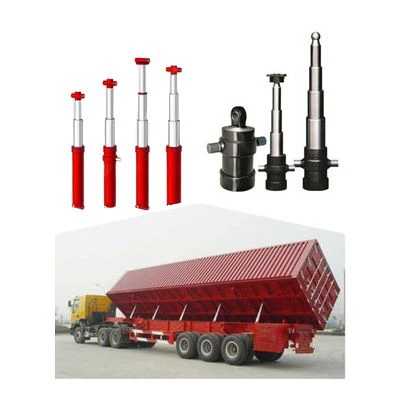

Semi-Trailer Tippers: Long-stroke front-end cylinders for tri-axle bulk aggregate and grain tipping trailers.
Agricultural Dump Carts & Trailers: Compact multi-stage tipping actuators for tractor-pulled farm wagons and manure spreaders.
Mining & Off-Highway Haulers: High-tonnage tipping units built to handle abrasive rock, ore, and demolition debris.
Waste Management Vehicles: Hook lifts, refuse compactor trucks, and recycling tipping platforms.





Mounting Interfaces: Top trunnion, bottom trunnion, sphere-and-socket, top eyelet with spherical plain bearings, or custom clevis mountings.
Integrated Valve Blocks: Direct-flanged pilot-operated check valves, relief valves, or lowering control valves mounted to the base port.
Cover Tubes (Outer Dust Jackets): Steel protective outer shrouds shielding chrome stages from falling rocks, asphalt splatter, and impact damage.
Fluid Porting: BSPP, SAE O-ring boss, NPT, or custom manifold block entry positions aligned with vehicle chassis layouts.





[Raw Material Inspection: 27SiMn Steel]--->[Precision Cold Drawing & Stress Relieving]--->[CNC Machining & Deep-Hole Boring/Honing]--->[Centerless Grinding & Hard Chrome Plating]--->[Automated Ultrasonic Cleaning & Assembly]



Material Sourcing & Verification: Chemical composition verification via spectrometer analysis and mechanical yield testing prior to production.
Deep-Hole Honing: Internal tube bore honing achieves H8/H9 dimensional tolerance and smooth fluid sealing surfaces.
Automated Welding: Robotic MIG/MAG welding of end caps, trunnions, and oil ports under strict AWS D1.1 specifications.
Plating Quality Control: Precision electroplating monitoring ensures uniform chrome thickness across the length of every stage tube.





Every manufactured cylinder undergoes mandatory quality control protocol prior to packing:
100% Full-Stroke Hydrostatic Pressure Testing: Tested at 1.5x maximum working pressure (up to 300 bar) to confirm structural integrity and weld soundness.
Internal Leakage / Bypass Test: Stage seals are pressure-held at full stroke to verify zero pressure loss over defined hold periods.
Low-Pressure Smoothness Check: Verifies uniform stage extension sequence without chatter, sticking, or pressure spikes.
Dimensional & Surface Roughness Audit: Laser micrometer inspection of outer diameters, pin hole alignments, plating thickness, and surface micro-finish (Ra).





To receive an accurate engineering drawing and commercial proposal within 24 hours, supply the following parameters:
Payload Mass / Lifting Capacity Required (Tons): Maximum total weight of the loaded tipping box.
Body Dimensions & Pivot Location: Length of tipping body, distance from hinge pivot to cylinder mounting point.
Target Tipping Angle: Desired tilt angle (typically 45° to 55°).
Closed Retracted Height Pin-to-Pin (L0): Maximum available installation envelope on the vehicle chassis.
Operating Pressure: Hydraulic system pump operating pressure (bar/PSI).
Mounting Style: Trunnion, eyelet, or sphere-and-socket specifications.
